LED strip lighting can look exceptional when it is installed properly. It can also look unfinished very quickly if the strip is left exposed, poorly mounted, or treated like an afterthought. That is where LED profiles make a real difference.
At Display Lighting, we see this all the time. Clients choose a strong strip, pick the right colour temperature, and invest in quality control gear, but the finish still depends heavily on the profile. The right profile helps create a cleaner look, improves diffusion, protects the strip, and supports long-term performance. The wrong one can leave you with spotting, glare, awkward angles, or a result that never quite feels complete.
If you are planning a strip lighting project for retail joinery, cabinetry, shelving, architectural detailing, or a commercial fit-out, here is how to choose the right LED profile from the start.
Why LED Profiles Matter More Than People Think
A lot of people assume the profile is simply a housing. In reality, it does much more than that.
A well-chosen profile helps:
- protect the LED strip from dust, knocks, and accidental contact
- improve heat dissipation through the aluminium body
- reduce visible diode spotting with the right diffuser
- create a cleaner architectural finish
- control the direction and spread of light
- make installation look intentional rather than improvised
That is why our LED strip lighting and LED profiles work best as part of the same system. The strip provides the light. The profile shapes how that light is seen.
Start With The Application, Not The Product Name
The easiest way to choose the right profile is to begin with the job the lighting needs to do.
Ask yourself:
- Is the strip being recessed into cabinetry or joinery?
- Is it being mounted directly onto a visible surface?
- Does it need to throw light into a corner or onto a shelf?
- Is it part of a suspended feature or architectural statement?
- Is the finish decorative, practical, or both?
The answer usually points you toward one of three profile types: recessed, surface-mounted, or suspended.
When To Choose A Recessed LED Profile
Recessed profiles are the best option when you want the lighting to feel built into the surface.
They are commonly used in:
- cabinetry
- shelf lighting
- ceiling details
- wall joinery
- task lighting zones
- retail fit-outs where a clean, integrated finish matters
Because the profile sits into the substrate, the lighting feels more architectural and less like an add-on. This is often the right approach when the installation needs to disappear into the detail and leave only the light visible.
For commercial shelving and cabinetry, recessed profiles can also help control glare because the emitter sits deeper in the joinery line. That creates a more refined look, especially when paired with the right diffuser.
When Surface-Mounted Profiles Make More Sense
Surface-mounted profiles are ideal when the strip cannot be recessed or when the surface detail is better suited to an applied fitting.
They are useful for:
- retrofit projects
- under-shelf lighting
- cabinet undersides
- corners and junctions
- areas where the substrate cannot be routed
- commercial joinery that needs a straightforward install
At Display Lighting, surface-mounted options are available in flat, angled, and curved formats. That flexibility matters because the profile does not just hold the strip. It also affects where the light lands.
An angled profile, for example, is often the better choice for shelf lighting because it throws the light onto the product rather than straight down or back into the cabinet. In retail and display work, that can improve visibility immediately.

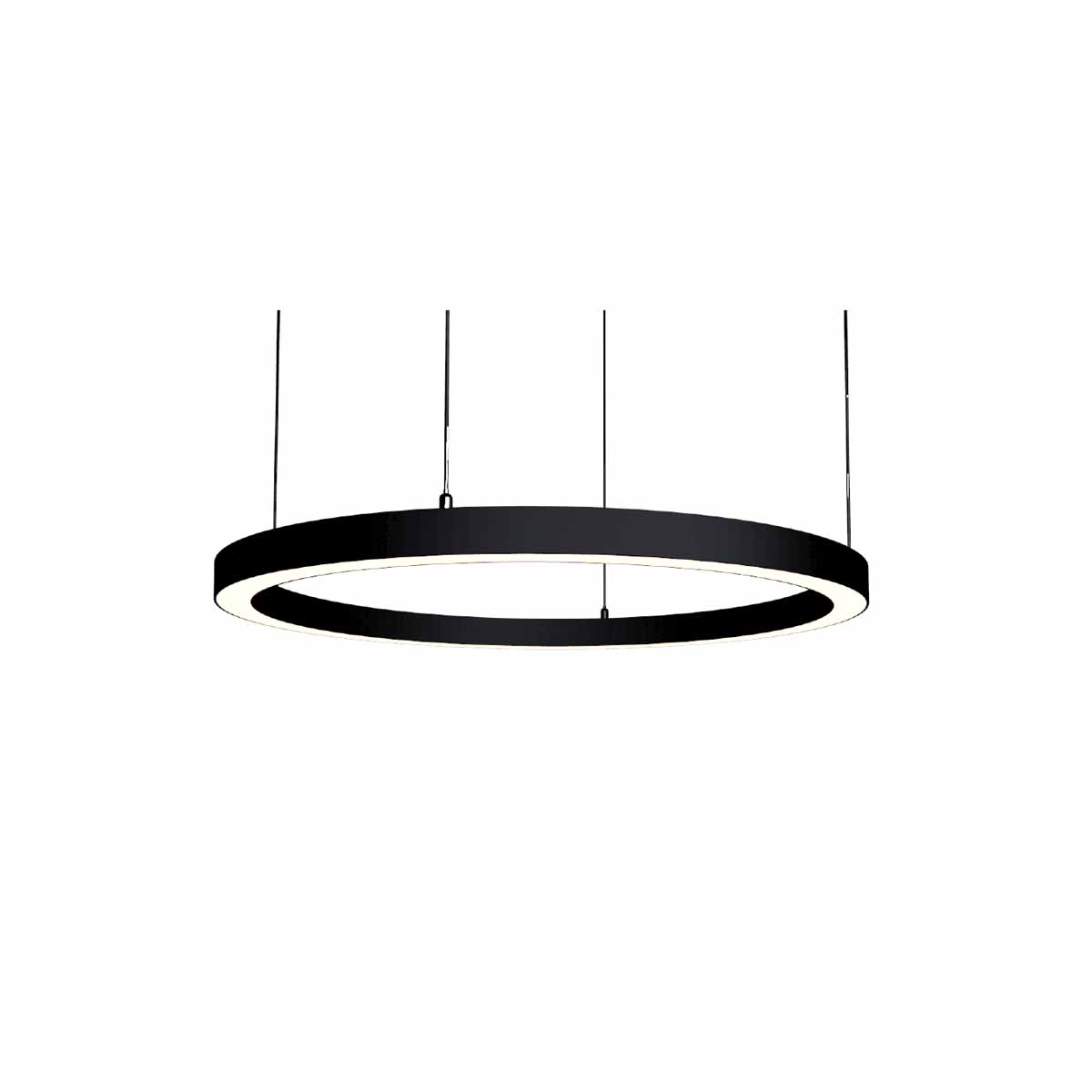

Suspended Profiles Are About More Than Looks
Suspended profiles are often associated with feature lighting, but they are also practical in the right commercial spaces.
They work particularly well in:
- offices
- restaurants
- meeting areas
- reception spaces
- open-plan commercial interiors
- architectural projects where strip lighting becomes part of the design language
A suspended profile can turn strip lighting into a primary visual feature while still delivering useful illumination. This is especially effective in commercial environments where the lighting needs to support both function and aesthetics.
If the project moves beyond joinery and into broader feature lighting, our lighting design services can help match the right profile and strip combination to the space.
Depth Makes A Bigger Difference Than Many People Expect
One of the most overlooked decisions is profile depth.
A deeper profile can significantly reduce spotting, especially when using lower wattage tapes or installations where the light line is directly visible. If the diffuser sits too close to the strip, the LED points may still show through. If the profile is deeper, the diffuser has more space to soften and blend the output.
This matters most in:
- display shelving
- cabinetry
- premium retail joinery
- glass-adjacent installations
- projects where the light line itself is visible
If the goal is a cleaner, smoother, more premium finish, profile depth is worth paying attention to from the beginning.
Choosing The Right Diffuser
The diffuser is not just an accessory. It changes the effect of the light.
In general:
- opal diffusers soften the output and create a warmer, more ambient look
- clear diffusers allow more direct brightness and a sharper visual effect
Neither is automatically better. It depends on the project.
If the priority is softer shelf lighting, reduced glare, or a more decorative finish, opal is usually the better choice. If the installation needs stronger output and the strip is not directly visible, clear can make sense.
This is one of the reasons profiles are so useful in retail and commercial applications. They let you control not just where the strip sits, but how the light actually reads in the finished space.
Finish Quality Matters Too
Profiles are part of the visible finish, especially in commercial projects.
Our LED profiles are supplied in anodised aluminium and can also be powder coated to suit the project. Matt black is particularly effective in architectural and commercial fit-outs where the profile itself needs to disappear into darker detailing or align with other fixtures.
That finish choice can make a big difference. A profile that clashes with the surrounding joinery or hardware can make even a good lighting install feel unresolved.
Do Not Ignore Heat Management
LED strips run better and last longer when heat is managed properly.
That is one of the practical benefits of aluminium profiles. They act as a heat sink, helping pull warmth away from the strip. This supports long-term performance and is especially useful in commercial applications where the lighting may operate for long periods each day.
It is one more reason we recommend treating the profile as part of the specification, not as a finishing extra added later.
Which Profile Is Right For Your Project
A simple way to decide is this:
- Choose recessed profiles when you want a built-in, architectural finish
- Choose surface-mounted profiles when you need flexibility, easier retrofit installation, or directional options like angled mounting
- Choose suspended profiles when the lighting needs to become part of the broader design statement
Then refine the choice based on depth, diffuser, finish, and the direction the light needs to travel.
If your project also involves product shelving or display-focused lighting, our blog on How To Light Up Shelving and Display Cabinets for Better Product Visibility is a useful next read.
A Better Strip Lighting Result Starts With The Right Profile
The best strip lighting projects look simple when they are finished. That is usually because the profile was chosen properly at the start.
At Display Lighting, we supply LED profiles, LED strip lighting, LED power supplies and control systems, and lighting design services for projects that need more than a basic off-the-shelf result.
If you want your strip lighting to look cleaner, last longer, and perform more professionally, choosing the right profile is one of the most important decisions in the whole installation.
